# 多项式回归

n
import math
import numpy as np
import torch
from torch import nn
from d2l import torch as d2l
  1. 生成数据集 (噪声项服从均值为 0,标准差为 0.1 的正态分布)
n
# 多项式的最大阶数
max_degree = 20
# 训练和测试数据集的大小
n_train,n_test = 100,100
# 分配大量空间
true_w = np.zeros(max_degree)
# 只有前四位作为多项式模型的真实权重
true_w[0:4] = np.array([5,1.2,-3.4,5.6])
# 生成样本特征 shape(n_train+n_test,1), 均值为 0 方差为 1
features = np.random.normal(size=(n_train+n_test,1))
# 打乱特征顺序
np.random.shuffle(features)
# 生成 [0,1,2,3...19]==> 二维数组,
# [[0,0^1,0^2,....0^19],
# [1,1^1,1^2,....1^19],
# [2,2^1,........2^19],
# ...
# [199,199^1,199^2.....199^19]]
#  每一列都是 features 的一个幂次
poly_features = np.power(features,np.arange(max_degree).reshape(1,-1))
# 对每一列进行归一化
for i in range(max_degree):
    poly_features[:,i] /= math.gamma(i+1) # gamma(i) = (i-1)!
# (200,20)* (20,1)==> (200,1)
labels = np.dot(poly_features,true_w)
# 添加标准差为 0.1 的正态分布噪声
labels += np.random.normal(scale=0.1,size=labels.shape)
  1. 对模型进行训练和测试
n
class Accumulator:
    def __init__(self,n):
        self.data = [0.0]*n
    def add(self,*args):
        self.data =  [float(a) + b for a,b in zip(args,self.data)]
    def reset(self):
        self.data = [0.0]*len(self.data)
    def __getitem__(self,idx):
        return self.data[idx]
def evaluate_loss(net, data_iter, loss):
    """评估给定数据模型的损失"""
    metric = d2l.Accumulator(2) # 损失的总和,样本数量
    for X, y in data_iter:
        out = net(X)
        print("Out: ",out)
        y = y.reshape(out.shape)
        print("y: ",y)
        # 返回包含每个样本损失的张量
        l = loss(out,y)
        print("loss",l)
        # 将每批数据的损失总和和样本数量添加到 metric
        metric.add(l.sum(),l.numel())
    # 返回样本平均损失
    return float(metric[0] / metric[1])
n
true_w, features, poly_features,labels = [torch.tensor(x,dtype=torch.float) for x in [true_w,features,poly_features,labels]]
features[:2],poly_features[:2,],labels[:2]

/var/folders/9h/5v78_tks5tgf6pq1qk_3bcfh0000gn/T/ipykernel_36836/3061289264.py:1: UserWarning: To copy construct from a tensor, it is recommended to use sourceTensor.clone().detach() or sourceTensor.clone().detach().requires_grad_(True), rather than torch.tensor(sourceTensor).
true_w, features, poly_features,labels = [torch.tensor(x,dtype=torch.float) for x in [true_w,features,poly_features,labels]]

(tensor([[-1.1872],
[-0.3378]]),
tensor([[ 1.0000e+00, -1.1872e+00, 7.0472e-01, -2.7888e-01, 8.2772e-02,
-1.9653e-02, 3.8887e-03, -6.5953e-04, 9.7874e-05, -1.2911e-05,
1.5327e-06, -1.6542e-07, 1.6366e-08, -1.4946e-09, 1.2674e-10,
-1.0031e-11, 7.4431e-13, -5.1979e-14, 3.4283e-15, -2.1421e-16],
[ 1.0000e+00, -3.3782e-01, 5.7062e-02, -6.4255e-03, 5.4267e-04,
-3.6665e-05, 2.0644e-06, -9.9627e-08, 4.2070e-09, -1.5791e-10,
5.3346e-12, -1.6383e-13, 4.6121e-15, -1.1985e-16, 2.8920e-18,
-6.5133e-20, 1.3752e-21, -2.7328e-23, 5.1288e-25, -9.1191e-27]]),
tensor([-0.3680, 4.4499]))

n
def accuracy(y_hat,y):
    """计算预测正确的数量"""
    if len(y_hat.shape) > 1 and y_hat.shape[1] > 1:
        y_hat = y_hat.argmax(1)
    cmp = y_hat.type(y.dtype) == y
    return float(cmp.type(y.dtype).sum())
def train_epoch_ch3(net, data_iter, loss, updater):
    if isinstance(net, torch.nn.Module):
        net.train()
    metric = Accumulator(3)
    for X, y in data_iter:
        out = net(X)
        l = loss(out,y)
        if isinstance(updater, torch.optim.Optimizer):
            updater.zero_grad()
            l.mean().backward()
            updater.step()
        else:
            l.sum().backward()
            updater(X.shape[0])
        metric.add(float(l.sum()),accuracy(out,y),y.numel())
    return metric[0] / metric[2],metric[1] / metric[2]
def train(train_features,test_features,train_labels,test_labels,num_epochs=400):
    loss = nn.MSELoss(reduction='none')
    input_shape = train_features.shape[-1]
    net = nn.Sequential(nn.Linear(input_shape,1,bias=False))
    batch_size = min(10,train_labels.shape[0])
    train_iter = d2l.load_array((train_features,train_labels.reshape(-1,1)),batch_size)
    test_iter = d2l.load_array((test_features,test_labels.reshape(-1,1)),batch_size,is_train=False)
    trainer = torch.optim.SGD(net.parameters(),lr=0.01)
    animator = d2l.Animator(xlabel='epoch',ylabel='loss',yscale='log',xlim=[1,num_epochs],ylim=[1e-3,1e2],legend=['train','test'])
    for epoch in range(num_epochs):
        train_epoch_ch3(net,train_iter,loss,trainer)
        if epoch == 0 or (epoch+1) % 20 == 0:
            print("epoch: ",epoch)
            print(evaluate_loss(net,train_iter,loss))
            animator.add(epoch + 1,(evaluate_loss(net,train_iter,loss),evaluate_loss(net,test_iter,loss)))
    print('weight: ', net[0].weight.data.numpy())
  1. 三阶多项式函数拟合 (正常)
n
# 选择前四个特征维度
train(poly_features[:n_train,:4],poly_features[n_train:,:4],
      labels[:n_train],labels[n_train:],num_epochs=400)

weight: [[ 5.018691 1.2304041 -3.4126675 5.511929 ]]

正常

  1. 线性函数(欠拟合)
n
train(poly_features[:n_train,:2],poly_features[n_train:,:2],labels[:n_train],labels[n_train:],num_epochs=400)

欠拟合

  1. 高阶多项式函数拟合(过拟合)

    train(poly_features[:n_train,:],poly_features[n_train:,:],labels[:n_train],labels[n_train:],num_epochs=1500)

    过拟合

整体过程

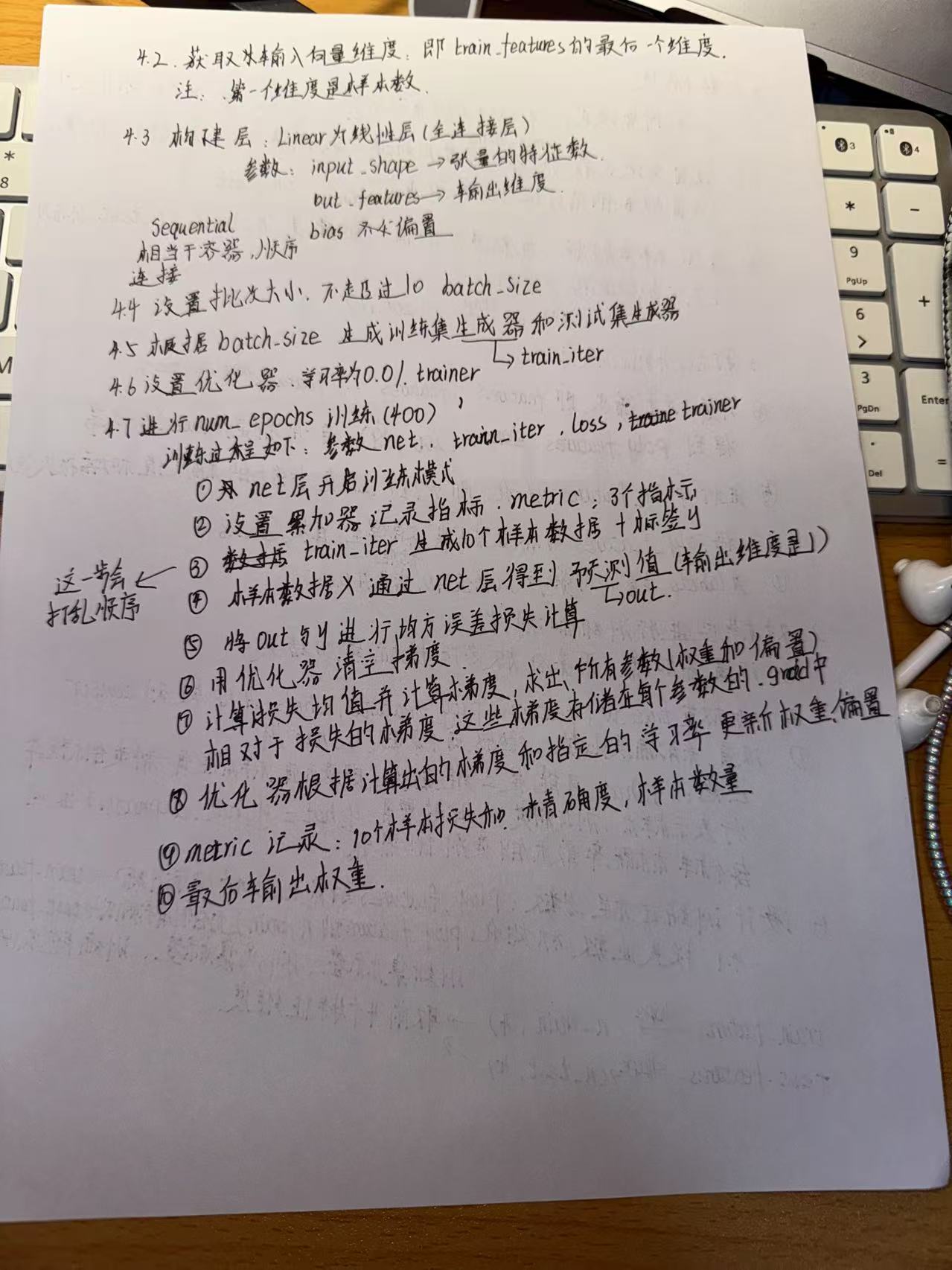

整体过程-2
